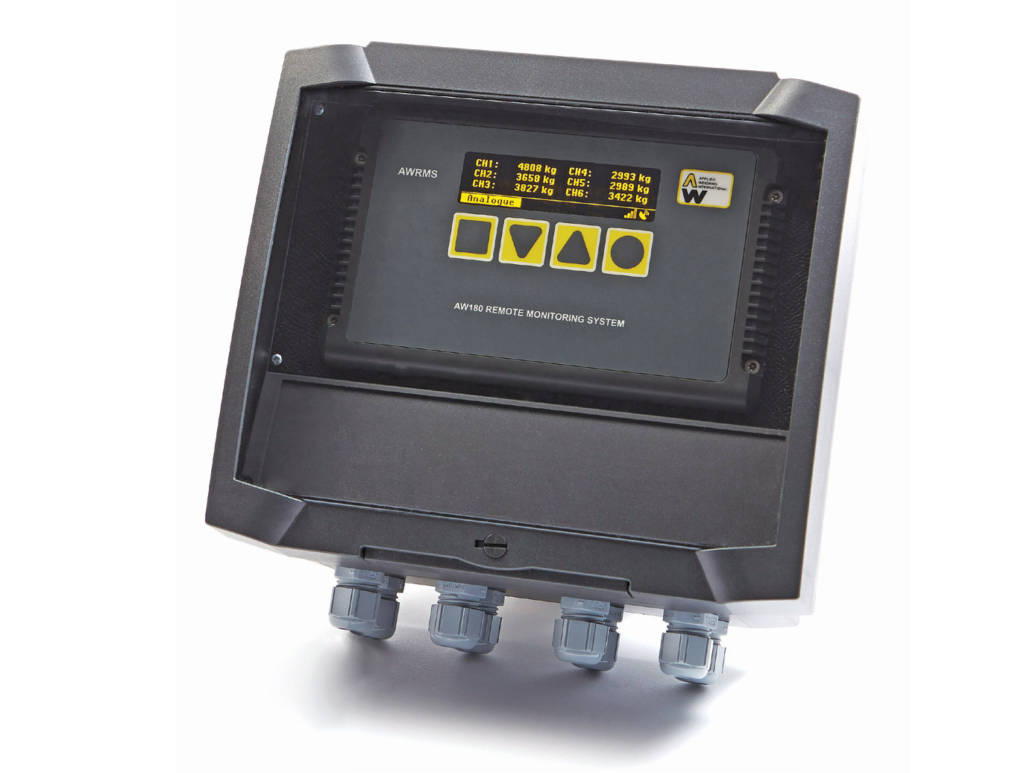

Teleonix 2

The Teleonix 2 enables a client and/or their supplier to remotely monitor weighing systems or other measurement devices at one or numerous remote sites. The system can be configured so that the supplier can be automatically alerted to changes in content level for replenishment or stock control purposes by email.

The client and/or their supplier PC or mobile device shows a graphical representation of the weighing system, together with a map of the site location and the facility to download historic data for importing into spreadsheets or databases. The unit will accept up to 6 off confi gurable analogue inputs, RS232 and CAN BUS with the facility to expand this number if required.

How Teleonix 2 works

Features

  • Remote monitoring of stock levels at any number of remote sites on the internet via the GPRS network.
  • Email alerts on pre-set silo weights
  • Historical data download as a .csv file
  • 6 configurable analogue input channels
  • CAN BUS interface – for direct connection to the Target 260 and Status 290 range of weighing instruments increasing accuracy by eliminating analogue signal losses
  • RS232 interface
  • GPS position location with map
  • ABS IP65 Enclosure
  • 110-240VAC or 10-32VDC supply versions
  • Bright OLED display for content view or configuration

Options/Accessories

  • AW RMS Telemetry unit DC version
    AW180/00000
  • AW RMS Telemetry unit AC version
    AW180/00001
  • AW RMS SIM / DATA support
    AW180/00100

Technical specification

  • Housing
    ABS with clear lid, 8 x M16 cable glands. Sealing to IP65.
  • Display
    Bright OLED 256×64 pixel display
  • Dimensions
    229mm(W) x 245mm(H) x 120mm(D) Mounting Holes: 5.2mm (180mm x 180mm centres)
  • Weight
    1800g
  • Supply voltage
    10-32VDC or 110/240VAC
  • Accuracy
    +/-50ppm/ºC(-10 C to +50ºC) Analogue input
  • Environmental conditions
    -10ºC to +50ºC, storage: -40ºC to +70ºC
  • Inputs:
    • 6 off configurable Isolated analogue input channels. 4-20mA, 0-20mA, 0-10VDC, 0-5VDC, +/-10VDC or +/-5VDC.
    • 1 off RS232
    • 1 off CAN BUS for connection of up to 8 Target 260 or Status 290 range of weighing instruments.

Load cell monitoring & alerts

When your load cells are linked to the AW190 Intelligent load cell junction box and Target 260 or Status 290 weighing instrument, the Teleonix 2 web page will display the individual load cell status and will alert if a load cell fails or the signal is out of tolerance, it will instantly email any enabled users of the fault and which load cell it is that requires attention. This enables the user to decide on immediate intervention, preventing a potential overfill or running out of material.
Individual load cells are monitored and an alert is transmitted for:
  • Any load cell signal is over its pre-set range
  • Any load cell signal is under its pre-set range
  • Any load cell signal is out of % balance compared to the other load cells
  • Any load cell cable break
Fault occurs in load cell(s)

Fault occurs in load cell(s)

Load cells connected to AW190 intelligent Junction box(es)

Load cells connected to AW190 intelligent Junction box(es)

AW190 Intelligent Junction Box(es) to Target or Status load cell amplifier(s)

AW190 Intelligent Junction Boxe(s) to Target or Status load cell amplifier(s)

Load cell amplifier(s) connected to Teleonix 2

Load cell amplifier(s) connected to Teleonix 2

Data feeds streamed via GPRS and SMS networks

Data feeds streamed via GPRS and SMS networks

Individual load cell fault alert monitored remotely via internet access on desktop or mobile devices

Individual load cell fault alert monitored remotely via internet access on desktop or mobile devices

Alerts for on-site support

The alert can also be set to inform our support team that a site repair is required and if an on-site support package is in place, then a member of our team will schedule for an engineer to attend.

Data monitoring

Via the web page, the user has an overview showing all devices and can view detailed information and analysis of levels, alerts and selectable, historical graphical trends.Data can be exported into spreadsheets or databases such as Excel or Access.
Telemetry screen - Continuous data and fault monitoringContinuous data and fault monitoring
Telemetry screen - Client Site OverviewClient Site Overview
Telemetry screen - GPS location with mapping facilityGPS location with mapping facility
Telemetry screen - Historic data view with .csv download facilityHistoric data view with .csv download facility

A modern and intuitive website with added features:

Displays the current usage rate of each silo (TPH)

Displays the calculated time to low weight (using the usage rate and the preset low weight value)

Enhanced Graphical tracking

User ability to edit data such as low level / reorder level / urgent level / silo contents name

View Demo

To access demo site, please use the following details:
Login: teleonix@aw.co.uk Password: Teleonix22!
