Status 290P® Panel Mount

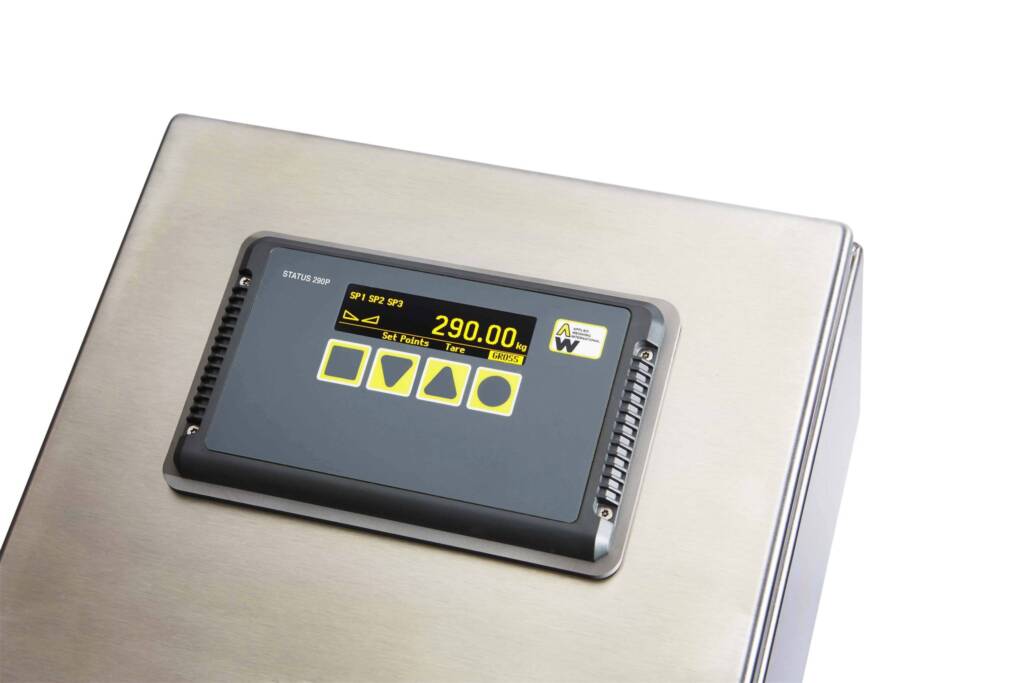

The Status 290P® is a high precision panel mount weigh controller (the picture shows it fitted in  a panel).  A choice of batch control and communication interfaces for most industrial weighing applications is available.

The Status 290P® is supplied with a stainless steel IP65 bezel for mounting in the door of a control panel.

The simple keypad allows for easy set-up, with all settings stored in memory.

The Status 290P® is supplied as standard with 3 configurable volts free outputs and 2 digital inputs for control.

Features

  • General weighing, batching, loss-in-weight, gain in-weight and big bag filling programs as standard.
  • High precision weigh controller with 24 bit resolution.
  • 10-32vdc or 110-240vac power supply models.
  • Stainless steel IP65 panel mounting bezel.
  • Weights and Measures OIML R76 & MID R61 approval.
  • Real time clock.
  • 3 volts free relay contact outputs and 2 configurable digital inputs.
  • Bright OLED display for easy viewing in all light conditions.
  • The capability to monitor and alarm individual load cell faults including out of range, out of balance and cable break faults via the on board CAN BUS interface when used in conjunction with the AW190 Intelligent Load Cell Junction Box.
  • Analogue output card – fitted as standard.
  • Designed and manufactured in the UK.

Options/Accessories

  • Status 290P weigh controller, panel mount – DC version
  • Status 290P weigh controller, panel mount – AC version
  • Optional Ethernet TCP/IP Output Card
  • Optional Profibus Output Card
  • Optional Ethernet IP Output Card
  • Optional Profinet IRT Output Card
  • Optional EtherCAT Output Card
  • Optional Modbus TCP Output Card
To order, or find out more about this product, fill in the form here or call 0118 946 1900
