Model IT1 Ex 2/22

The Model  IT1 Ex 2/22 offers latest technology and controlling features for hazardous are weighing applications.



It is suitable for use in Zone 2 and 22 Hazardous Areas.



Specifically designed for easy installation, operator use and routine maintenance.



Its robust construction in stainless steel and high ingress protection rating (IP65) makes it suitable for industrial use even under the most adverse of operating conditions.

Features

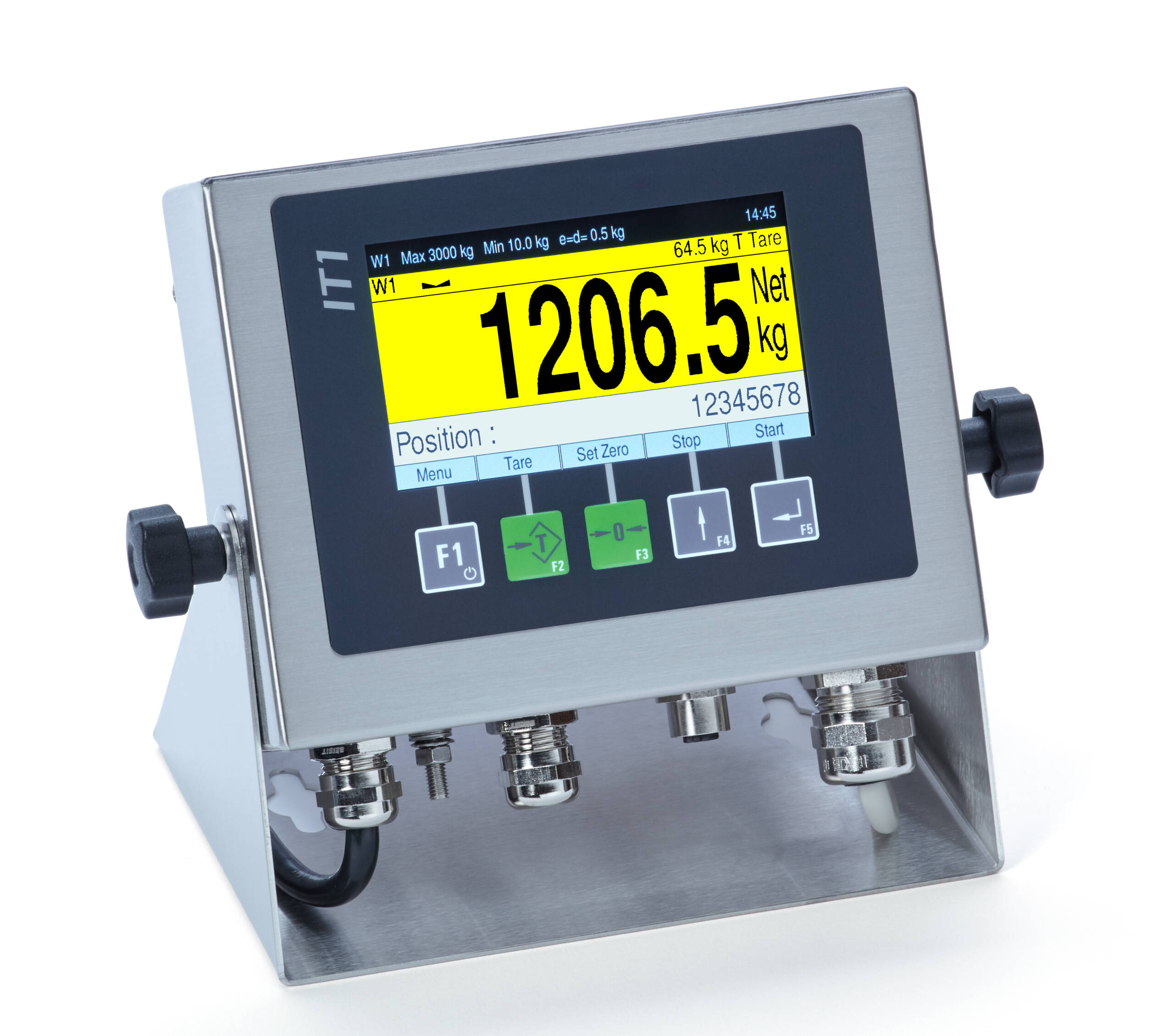

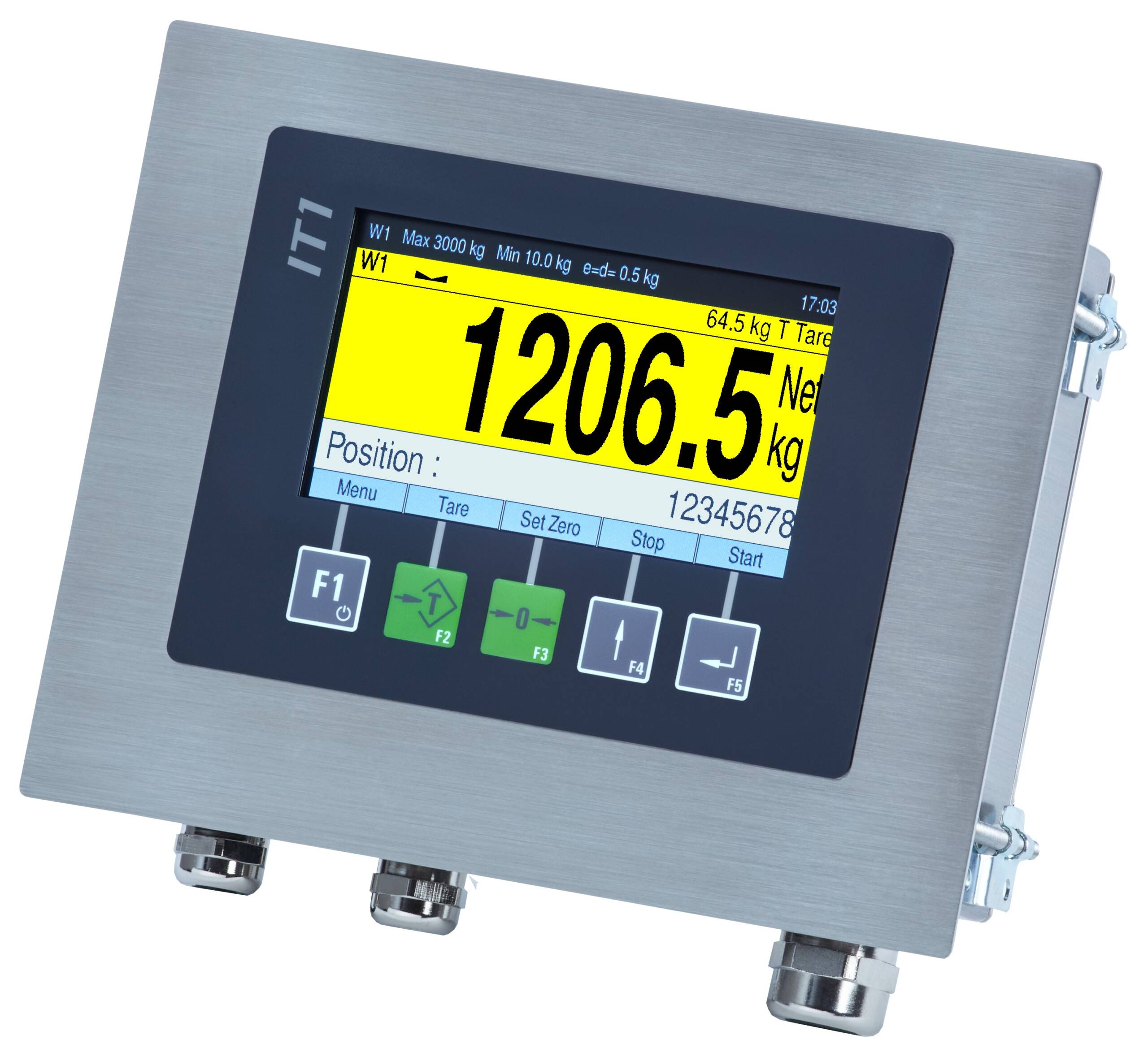

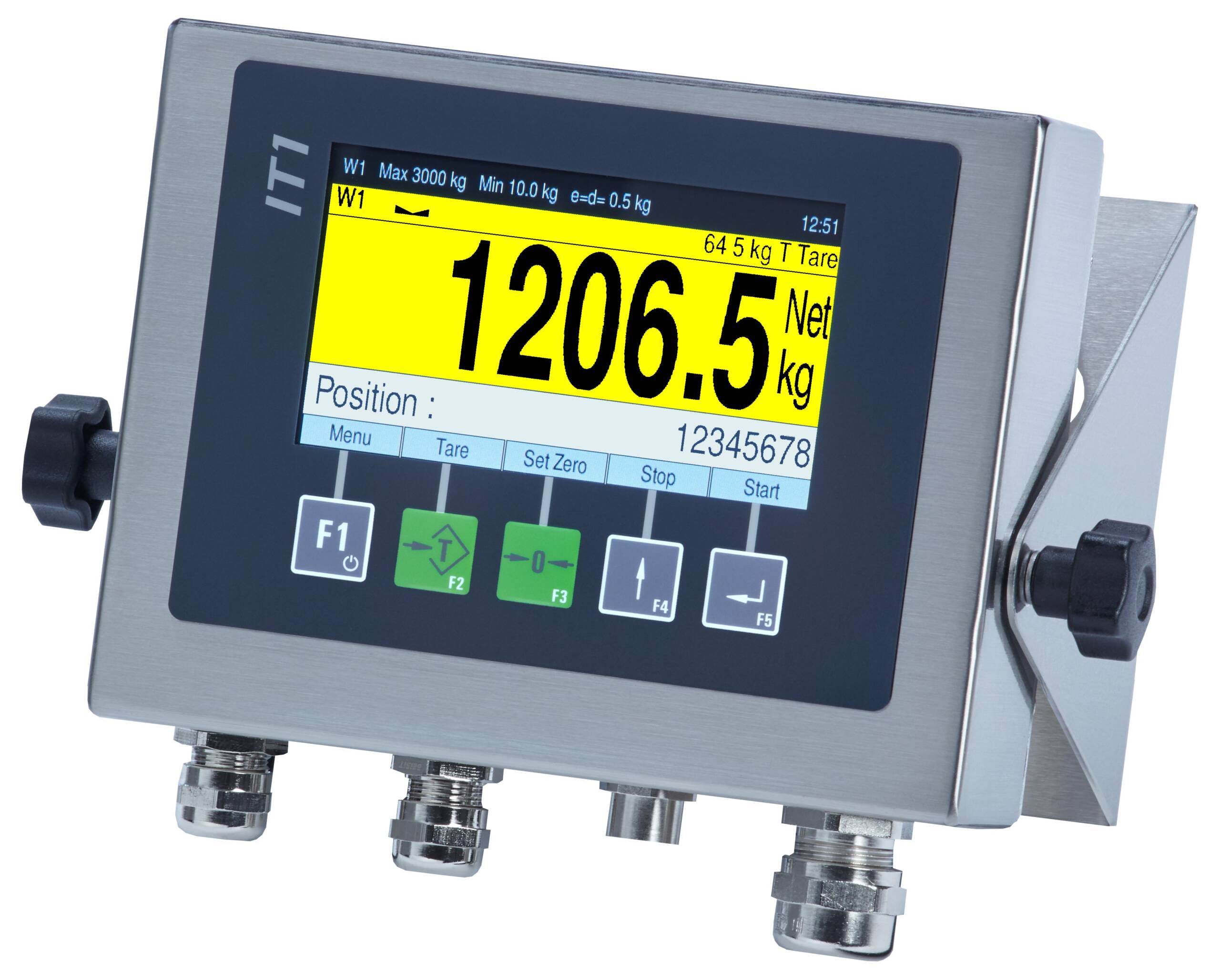

  • Desktop, wall mount or panel mount version housing options.
  • Bright 4.3" colour screen.
  • Sealed membrane keyboard with tactile feedback.
  • 12-30vdc or 110-240vac power supply models.
  • One socket for either: PC, Printer or Remote Display interface.
  • One socket for either: 2 digital inputs & 2 digital outputs, one digital output or analogue output.
  • OIML R76 for Weights and Measures applications.
  • Suitable for use in Zone 2 and 22 Hazardous Areas.

Options/Accessories

  • IT1 Ex 2/22 controller - AC version.
  • IT1 Ex 2/22 controller - DC version.
  • Internal W&M approved data archive.
  • PC Scale View.
  • PC COM+/ PC Archive.
  • PC ReadIT.
  • IT Configurator.
  • Remote Display.
  • Remote Diagnostics.
  • Ethernet Connector.
To order, or find out more about this product, fill in the form here or call 0118 946 1900
