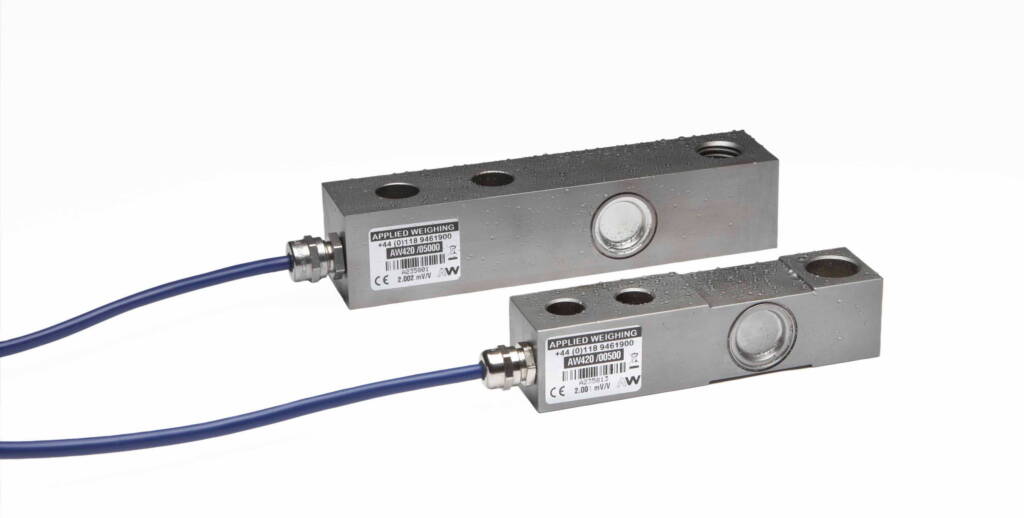

Ultra Shear Beam 250kg to 10,000kg

The Ultra Shear Beam range of load cells are designed for harsh wash down industrial, chemical and food applications and are suitable for use in hoppers, platforms, vessels and tank weighing.

The load cells are supplied in fully welded stainless steel, with sealing up to IP68.

Capacities from 250kg to 10,000kg with industry standard hole sizes, interchangeable with many products.

ATEX and OIML options available.

Features

  • Capacities from 250 kg to 10,000 kg
  • Matched outputs for simplified installation
  • High accuracy
  • Fully sealed up to IP68
  • CE Approval
  • 5 year limited warranty
  • Manufactured in the UK

Capacities

250kg, 500kg, 1,000kg, 1,500kg, 2,000kg, 2,500kg, 5,000kg, 7,500kg and 10,000kg

Options/Accessories

  • OIML C3 approval
  • ATEX for Zone 0, 1, 2, 20, 21 and 22 Applications
  • ATEX Category 1 II 1GD – see certificate
  • ATEX Category 1 II 3GD – see certificate
Manuals &
Documentation
Download datasheet
To order, or find out more about this product, fill in the form here or call 0118 946 1900
