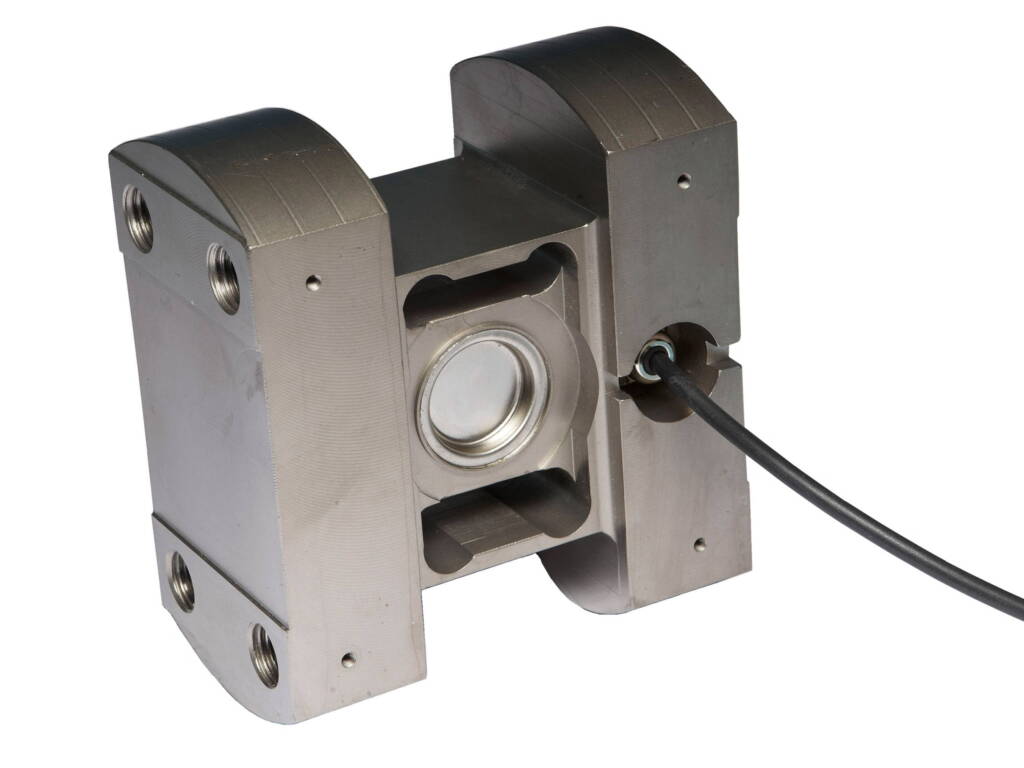

Side Cell 1,000kg, 2,000kg and 5,000kg

The Side Cell range of load cells are designed for harsh industrial applications and are suitable for use in hoppers, tanks, vessels and on board vehicle weighing.

The load cells are supplied in fully welded stainless steel, with sealing up to IP68.

Capacities of 1,000kg, 2,000kg and 5,000kg.

ATEX and OIML options available.

Features

  • 1,000kg, 2,000kg and 5,000kg capacities
  • For weighing On-board vehicles, hoppers, tanks and scales
  • Robust design for harsh industrial applications
  • Fully welded stainless steel, sealing upto IP68
  • Designed and manufactured in the UK
  • 5 year limited warranty

Capacities

1,000kg, 2,000kg and 5,000kg

Options/Accessories

  • OIML C3 approval
  • ATEX for Zone 0, 1 and 2 Applications
  • ATEX Category 1 II 1GD – see certificate
  • Stainless Steel Dummy Loadcell
  • Mild Steel Dummy Loadcell
Manuals &
Documentation
Download datasheet
To order, or find out more about this product, fill in the form here or call 0118 946 1900
