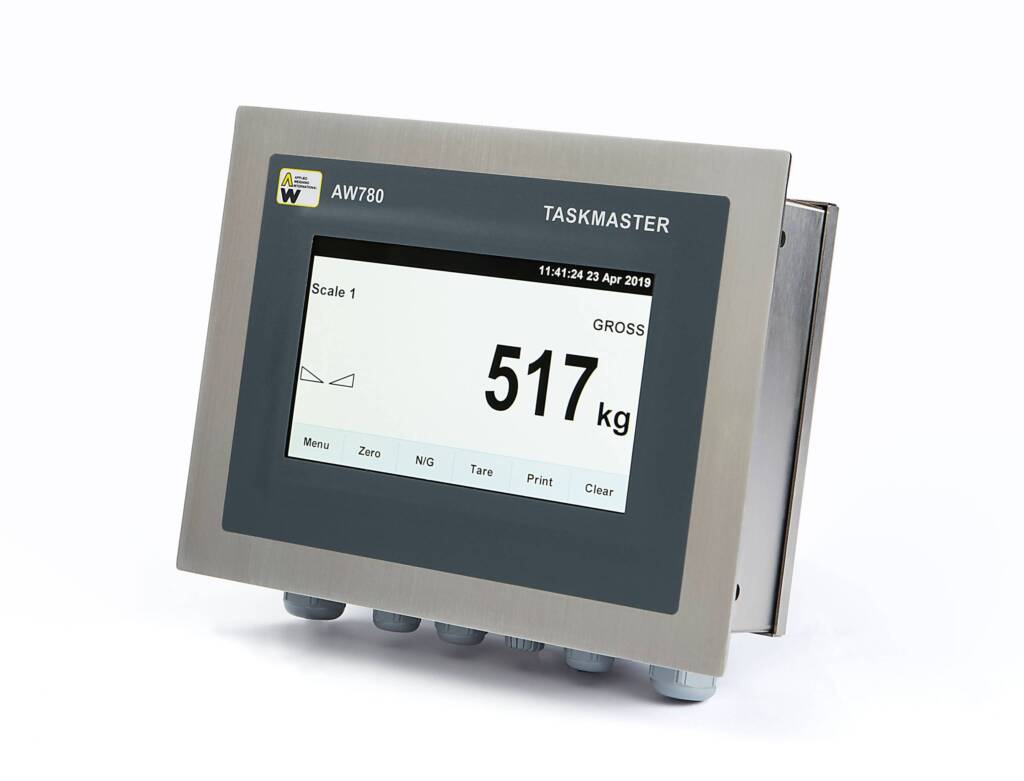

Taskmaster® 780P Panel Mount

The Taskmaster® 780P is a high precision, highly configurable and fully programmable weight and
process controller.

It has a rugged, industrial design with a modern graphical display.

It offers a choice of batch control and communication interfaces for most industrial weighing applications.

The configuration can be carried out through the instrument and via PC application.

As a standard Taskmaster® 780P is supplied with loadcell and digital inputs, relay outputs, USB, CAN Bus,
RS232 interfaces and range of optional interfaces available.

Features

  • High precision weighing and process controller with 24 bit resolution.
  • Display resolution of up to 100,000 divisions.
  • 10-32vdc or 110-240vac power supply models.
  • High resolution, full colour 7” projective capacitive touch screen LCD display.
  • 3 volts free relay contact outputs, 3 digital inputs, loadcell input, 2 USB interfaces, CAN Bus interface and 2 RS232 interfaces.
  • Highly configurable and fully programmable for batching and control functions.
  • 3 option card slots.
  • Real time clock and calendar.
  • Capability to monitor and alarm individual load cell faults including out of range, out of balance and cable break faults via the on board CAN Bus interface when used in conjunction with the AW Intelligent load cell Junction box.
  • Designed and manufactured in the UK.

Options/Accessories

  • Optional Triple Loadcell Input Card.
  • Optional Dual Analogue Output Card.
  • AW780P weigh controller – AC version
  • AW780P weigh controller – DC version
  • Choice of applications: single or multi scale weigh indicator, batch weigher, check weigher, plant control and automation.

Click on the image to view the Taskmaster Configuration video

Click on the image to view the Taskmaster Calibration video

Manuals &
Documentation
Download
full manual
Download
short manual
Download datasheet
To order, or find out more about this product, fill in the form here or call 0118 946 1900
