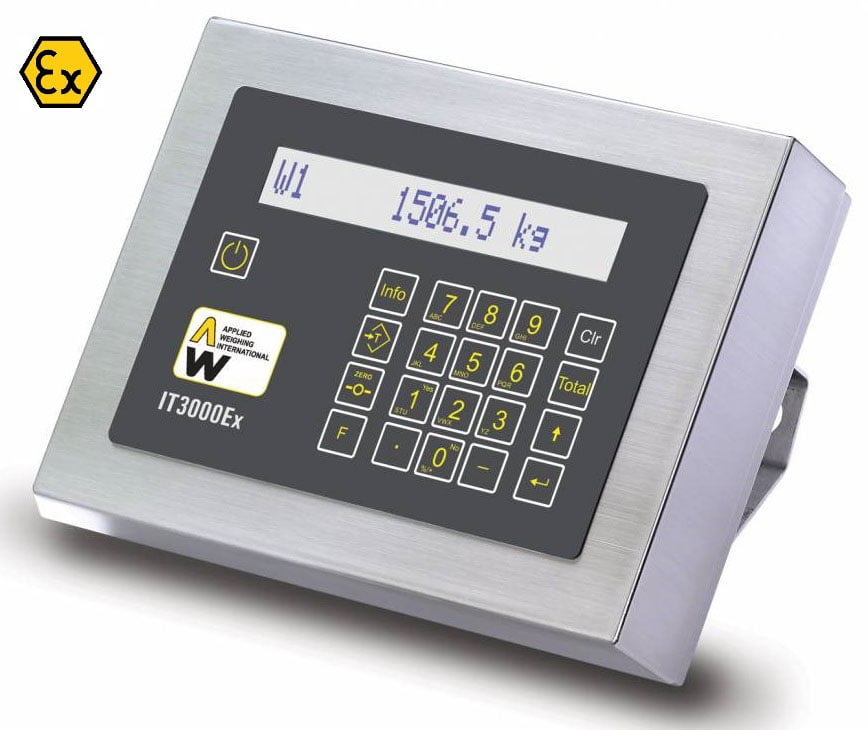

Model IT3000Ex

The IT3000Ex offers the latest technology and controlling features for hazardous area weighing applications.

It is suitable for use in Zone 1, 21 or 2, 22 Hazardous Areas.

Specifically designed for easy installation, operator use and routine maintenance.

Its robust construction in stainless steel and high ingress protection rating (IP65) makes it suitable for industrial use even under the most adverse of operating conditions.



Features

  • Desktop/wall mount or panel mount version housing options.
  • High contrast back-lit LCD text display.
  • Setup as single or multiple range scale or as multi-interval scale.
  • 12-30vdc or 240vac power supply models.
  • 2 digital inputs and 2 digital outputs (5vdc).
  • Optional plug-on serial interface, 10mA.
  • Interface separation module.
  • OIML R76 for Weights and Measures applications.
  • Suitable for use in Zone 1, 21 or 2, 22 Hazardous Areas.

Options/Accessories

  • IT3000Ex controller - 230 AC version.
  • IT3000Ex controller with 24 vdc power supply unit.
  • IT3000Ex controller with 12vdc rechargeable battery.
  • Optional Extension Box.
  • Optional IT3000Ex FILL.

Click on the images to view larger

Download datasheet
To order, or find out more about this product, fill in the form here or call 0118 946 1900
