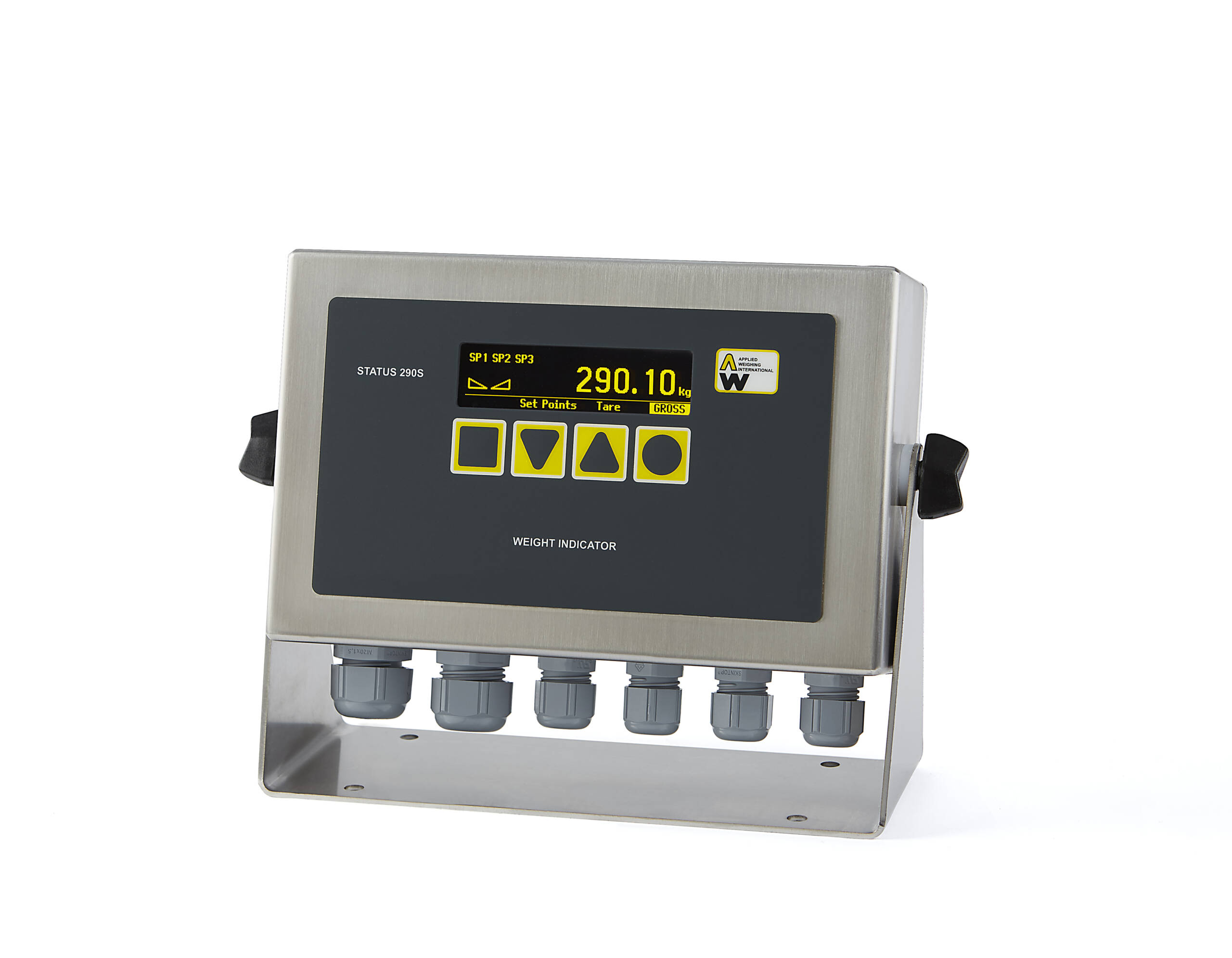

Status 290S® Universal Stainless Steel Mount

The Status 290S® is a high precision weigh controller. It offers a choice of batch control and communication interfaces for most industrial weighing applications.

The Status 290® is supplied in an IP66 stainless steel glanded enclosure. The simple keypad allows for easy set-up, with all settings stored in memory.

The Status 290S® is supplied as standard with 3 configurable volts free outputs and 2 digital inputs for control.

Features

  • General weighing, batching, loss-in-weight, gain in-weight and big bag filling programs as standard.
  • 10-32vdc or 110-240vac power supply models.
  • Stainless steel IP66 universal enclosure.
  • Weights and Measures OIML R76 & MID R61 approval.
  • Real time Clock.
  • 3 volts free relay contact outputs and 2 configurable digital inputs.
  • Bright OLED display for easy viewing in all light conditions.
  • Capability to monitor and alarm individual load cell faults including out of range, out of balance and cable break faults via the on board CAN BUS interface when used in conjunction with the AW190 Intelligent Load Cell Junction Box.
  • Analogue output card – fitted as standard.
  • Designed and manufactured in the UK.

Options/Accessories

  • Status 290P weigh controller, universal stainless steel – DC version
  • Status 290P weigh controller, universal stainless steel – AC version
  • Optional Ethernet TCP/IP Output Card
  • Optional Profibus Output Card
  • Optional Ethernet IP Output Card
  • Optional Profinet IRT Output Card
  • Optional EtherCAT Output Card
  • Optional Modbus TCP Output Card
Manuals &
Documentation
Download
full manual
Download
short manual
Download datasheet
To order, or find out more about this product, fill in the form here or call 0118 946 1900
