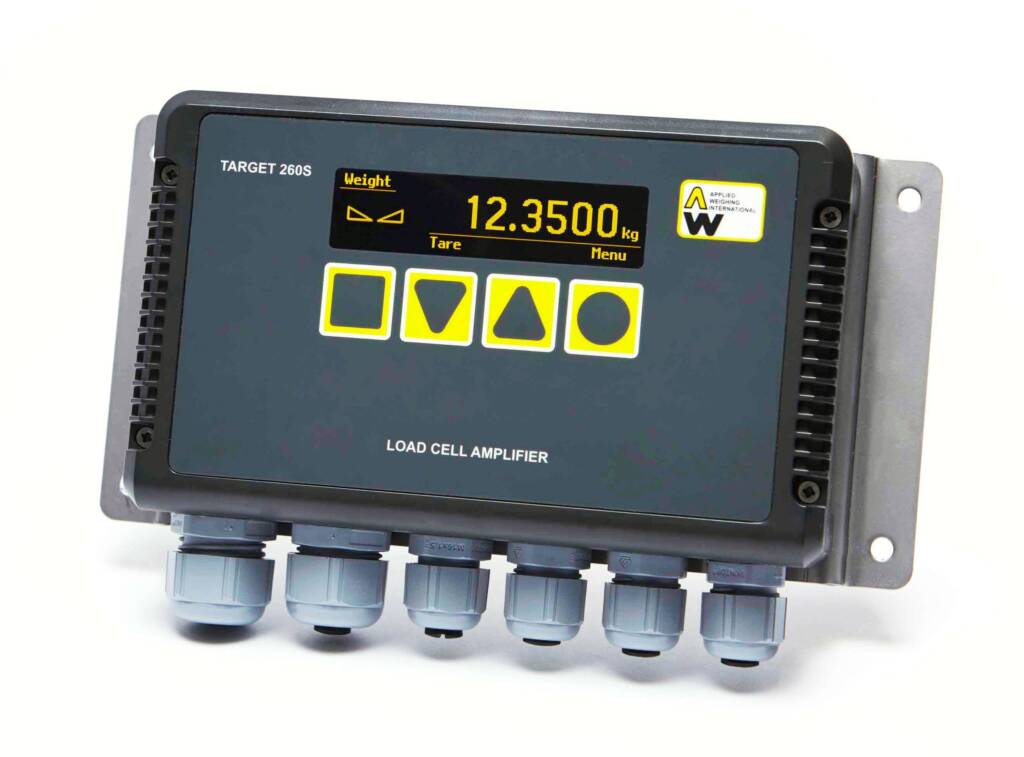

Target 260S® Surface Mount

The Target 260S® is a high precision load cell amplifier with weight display. It offers a choice of communication interfaces for most industrial weighing applications.

The Target 260S® is housed in an IP65 glanded enclosure. The simple keypad allows for easy set-up, with all settings stored in memory.

The Target 260S® is supplied as standard with 3 configurable volts free outputs and 2 digital inputs for control.

Options

  • A range of option cards including: 4-20mA, 0-20mA, +/-10v, +/-5vdc, 0-5vdc & 0-10vdc analogue outputs, Profibus DP, Ethernet IP, Ethernet TCP/IP, Profinet, EtherCAT & Modbus TCP.

Features

  • High precision weighing Amplifier with 24 bit resolution.
  • 10-32vdc or 110-240vac power supply models.
  • Housed in an IP65 glanded enclosure.
  • OIML R76 for Weights and Measures applications.
  • Real time Clock
  • 3 volts free relay contact outputs and 2 configurable digital inputs.
  • Bright OLED display for easy viewing in all light conditions.
  • Capability to monitor and alarm individual load cell faults including out of range, out of balance and cable break faults via the on board CAN BUS interface when used in conjunction with the AW190 Intelligent Load Cell Junction Box.
  • Analogue output card – fitted as standard.
  • Designed and manufactured in the UK.

Options/Accessories

  • Target 260S Load Cell Amplifier, Surface mounting – DC version
  • Target 260S Load Cell Amplifier, Surface mounting – AC version
  • Optional Ethernet TCP/IP Output Card
  • Optional Profibus Output Card
  • Optional Ethernet IP Output Card
  • Optional Profinet IRT Output Card
  • Optional EtherCAT Output Card
  • Optional Modbus TCP Output Card
Manuals &
Documentation
Download
full manual
Download
short manual
Download datasheet
To order, or find out more about this product, fill in the form here or call 0118 946 1900
