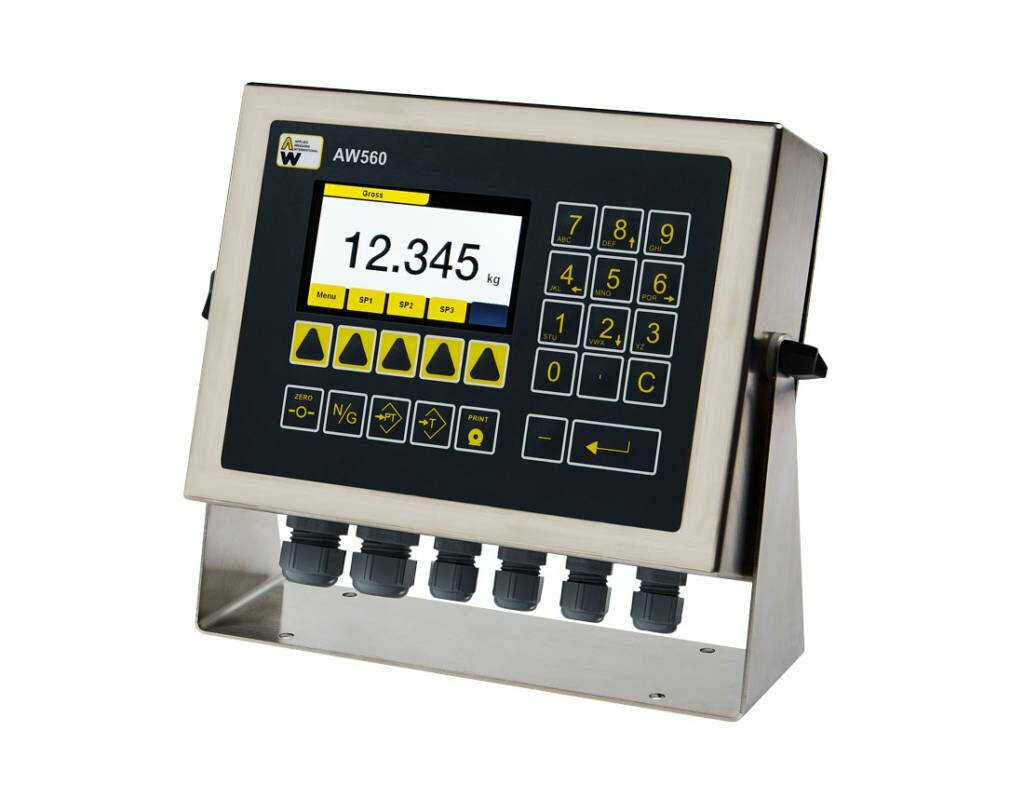

Model 560S

The 560S is a high precision weigh controller. It offers a choice of batch control and communication interfaces for most industrial weighing applications.

The 560S is supplied in an IP66 stainless steel glanded enclosure. The keypad allows for easy set-up, with all settings stored in memory. The 560S is supplied as standard with 3 configurable volts free outputs and 2 digital inputs for control.

Features

  • High precision weighing amplifier with 24 bit resolution.
  • 10-32vdc or 110-240vac power supply models.
  • Alpha numberic keypad.
  • Real time clock.
  • 3 volts free relay contact outputs and 2 configurable digital inputs.
  • Bright full colour display for easy viewing in all light conditions.
  • Capability to monitor and alarm individual load cell faults including out of range, out of balance and cable break faults via the on board CAN BUS interface when used in conjunction with the AW190 Intelligent Load Cell Junction Box.
  • Designed and manufactured in the UK.

Options/Accessories

  • AW560S weigh controller – DC version
  • AW560S weigh controller – AC version
  • Optional Ethernet TCP/IP Output Card
  • Optional Profibus Output Card
  • Optional Ethernet IP Output Card
  • Optional Profinet IRT Output Card
  • Optional EtherCAT Output Card
  • Optional Modbus TCP Output Card
  • Optional Analogue Output Card
Download datasheet
To order, or find out more about this product, fill in the form here or call 0118 946 1900
